RICKTER XFS NINJA COMPETITION

THE NEW RICKTER XFS NINJA COMPETITION

THE XFS NINJA COMPETITION

For the new Xfs ninja Competition; we have teamed up with some formula one composite engineers to develop a unit lighter, stronger and stiffer using Textreme Carbon fiber technology.The mission was to created the lightest hull possible using 100% carbon ( now produced with Textreme Carbon technology) and epoxy resin. Then, we adapted it for the powerful engine used these days on competition.

We have put that hull to the test intensely with our team rider with great success .

We designed and tested  a super long, wide and deep intake track to feed the pump with maximum water lamentation.

The result spoke by itself, the XFS NINJA COMPETITION  made amazing  combos possible with the height and the style that had not been seen before.

If you are really serious about your riding or competing we have the machine needed to win.

The all new Rickter XFS NINJA COMPETITION  is only available in Textreme or full carbon.

2019 Updates

The new XFS Ninja COMPETITION  features a new wider intake track and a bigger intake grate  to improve  water flow which result in better performance , the bottom hull as been widen to improve stability and increase the popping factor when hitting the wave prior to jumps resulting on increased jump height , we have also replace the aluminum exhaust tube by a carbon one to reduce  even more the weight of the unit .

The XFS NINJA COMPETITION comes with

  • Adjustable Bindings system
  • Adjustable engine mount
  • Scupper valve
  • Billet pole bracket
  • Billet  hood clip
  • Fully padded
  • Fully paint with graphics
  • Hood seal



THE XFS NINJA COMPETITION

The XFS NINJA COMPETITION hull is built with 100% epoxy resin using a high tech infusion process.

Standard XFS NINJA COMPETITION is built with full carbon TeXtreme built. For more information, fill up the form by clicking here. Our representatives will contact you with more details about weight, and the layup.

To see the high-end construction process don’t forget to have a look at our Rickter Factory video.

TEXTREME TECHNOLOGY

Standart Xfs Ninja Competition uses  Textreme Carbon. TeXtreme® Spread Tow carbon reinforcements are using spread tows to produce optimized reinforcements for ultra light composites.

Spreading tows (yarns) into very thin tapes enables reinforcements in woven structure as well as unidirectional tapes with mechanical performance and possibility for weight savings that are unique compared to conventional reinforcements.




SPREADING CARBON FIBER TOWS INTO TAPES



The spreading process



Image: The novel spreading process, from a carbon fiber tow into a thin UD tape. ©Oxeon 2014.



The Spread Tow UD tapes produced are much thinner than conventional carbon fiber tapes and have more material packed in the same area which gives better mechanical performance.




BENEFITS OF SPREAD TOW TAPES

Spread Tow tapes

Image: Illustration of the benefits of the TeXtreme® Spread Tow carbon fiber tapes over conventional carbon tapes. ©Oxeon 2014.



These Spread Tow tapes are then used as they are as local reinforcements etc. or used to weave the novel TeXtreme® Spread Tow fabrics.




BENEFITS OF SPREAD TOW FABRICS

Tape weaving processImage: Illustration of the benefits of the TeXtreme® Spread Tow carbon fabrics over conventional carbon fabrics. ©Oxeon 2014.



The patented TeXtreme® Spread Tow fabrics are then used by companies manufacturing composite products found in: bicycles, Formula 1, NASCAR, surfing, golf shafts, ice hockey, aerospace, industrial and Americas Cup.



The Hull will accept all Yamaha Super Jet mechaniclal parts, engine, etc. (Super Jet 08 and up need to replace the drive shaft of the version of the previous year).

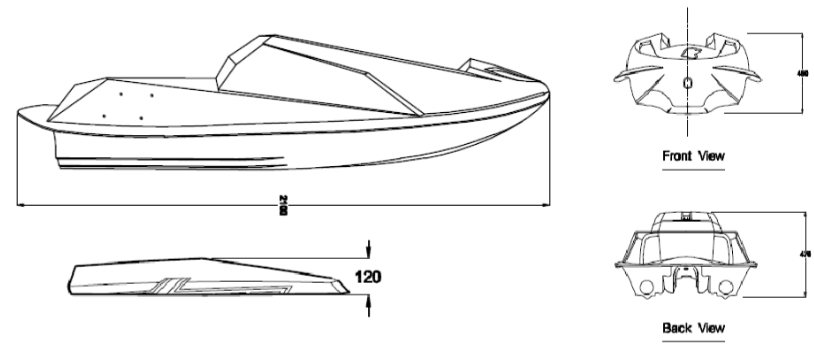

XFS NINJA COMPETITION SPECS

Length: 2010 mm, Width: 760 mm ,Height: 470 mm

  • Material: Carbon Fiber
  • Resin: Epoxy Infusion Resin System
  • Engine Setup: Standard Yamaha Super Jet 701
  • Pump Setup: Standard Yamaha Super Jet 701 Dr
  • Intake Gate: Standard Yamaha Super Jet 701 Pre-2008
  • Rideplate Setup: RICKTER XFS Rideplate
  • Accessories are included in RICKTER XFS/XFR
  • Aluminum Front Bracket 1 pc.
  • Adjustable Binding System set 1 pair
  • EVA padding 1 set
  • Aluminum Hood Clips 1 pair
  • Hood Seal 1 pc.
  • Aluminum Engine Mount Plate 1 pair
  • Stainless Steel Front Hook 1 pc.
  • Breathing Tube 2 pcs.
  • Aluminum Coupler Spacer (38×24.5x13mm) Big 1 pc.
  • Aluminum Coupler Spacer (34×24.5x13mm)Small 1 pc.

Note: Specification is subjected to change without notice.

BACK TRAY

Increased flotation on the back of the hull, to keep the ski from sinking on landings. To achieve this without changing the handling of the ski, it uses high volume back tray making the hull much more friendly to use.

INTAKE TRACK

The new XFS Ninja Competition features a new wider intake track and a bigger intake grate ( generation 3 ) to improve water flow which result in better performance.

FEET POSITION

Angle forward feet position gives the rider a more comfortable stance that provides a better riding position. An extra thick pad at the heel helps to absorb the impact of event biggest jump.

Stable Riding and Landing

XFS Ninja Competition is using the maximum width of the hull to enhance stability in riding and landing. It is also super short to increase maneuverability without affecting the stability of the XFS
